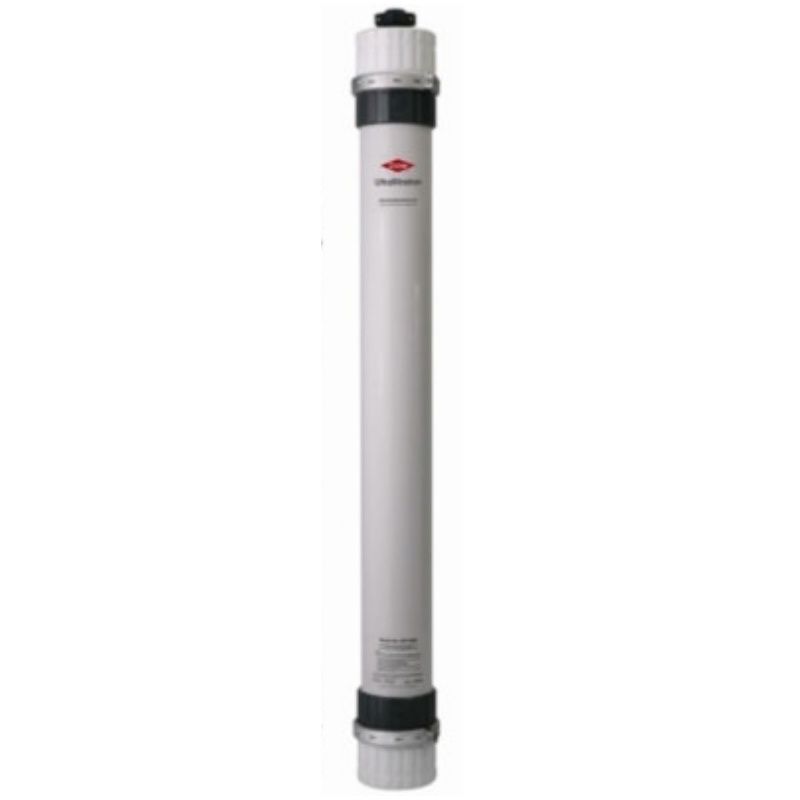

DuPont SFP-2880 PVDF Ultrafiltration Membrane Module 77m² 8 Inch

Datos del producto:

Place of Origin:	China
Nombre de la marca:	Dupont
Certificación:	CE
Model Number:	SFP-2880

Pago y Envío Términos:

Minimum Order Quantity:	1 PC
Precio:	Negociable
Packaging Details:	standard export packing
Delivery Time:	5- 8 work days
Payment Terms:	Western Union,T/T
Supply Ability:	60000 Units per Month

Contacto

Todos los productos

caja de distribución de iluminación (33)

caja de distribución eléctrica (33)

Caja de distribución a prueba de mal tiempo (48)

Caja del recinto de la fibra de vidrio (60)

Interruptor automático de la transferencia del ATS (68)

Módulos EDI (139)

Módulos de membrana de ultrafiltración (62)

disyuntor industrial (85)

sistema solar del picovoltio (72)

Estación de carga eléctrica de EV (21)

Retransmisiones modulares de la sincronización (12)

Retransmisiones de control de la automatización (64)

Transformador del regulador de voltaje (16)

Globos de la iluminación de la película (136)

Luz del globo de la luna (131)

Globos del trípode LED (115)

Torre ligera inflable (62)

Accesorios del bloque de terminales (6)

Descripción detallada del producto

Flow Range of SFP-2880:	3.1 – 9.3 m3 /hr	Membrane Area of SFP-2880:	77 m²
Nominal pore diameter of SFP-2880:	0.03 µm	This Core material of SFP-2880:	PVDF
This Filtrate Flux of SFP-2880:	40-120	Diameter of SFP-2880:	8 inch
SFP-2880 Flow direction settings:	External pressure structure, dead end filtration	SFP-2880 Max. operating TMP:	2.1 bar
Usage:	Surface Water, Seawater,Drinking Water,Critical Water Applications	Adavantage:	Large Flux,High-Efficiency Filtration
Resaltar:	DuPont SFP-2880 PVDF membrane module , 8 inch ultrafiltration membrane 77m² , PVDF ultrafiltration membrane with warranty

DuPont™ UF SFP-2880 High-Efficiency Filtration for Critical Water Applications

Product Specifications

Attribute	Value
Flow Range of SFP-2880	3.1 – 9.3 m3/hr
Membrane Area of SFP-2880	77 m²
Nominal pore diameter of SFP-2880	0.03 µm
Core material of SFP-2880	PVDF
Filtrate Flux of SFP-2880	40-120
Diameter of SFP-2880	8 inch
Flow direction settings	External pressure structure, dead end filtration
Max. operating TMP	2.1 bar
Usage	Surface Water, Seawater, Drinking Water, Critical Water Applications
Advantage	Large Flux, High-Efficiency Filtration

Product Overview

The DuPont™ UF SFP-2880 is an ultrafiltration membrane element utilizing a PVDF (polyvinylidene fluoride) hollow fiber structure. Designed for high-turbidity and highly contaminated water, it is suitable for demanding applications such as municipal wastewater reuse, industrial wastewater treatment, and food and beverage filtration.

Typical Applications

Brackish water desalination (groundwater, wells)
Industrial process water (food & beverage, pharmaceuticals)
Wastewater recovery & reuse (mining, textiles, electronics)
Pre-treatment for ultrapure water (power plants, semiconductors)

Performance Specifications

Filtration Area: 55m² per module
Operating Pressure: 0.1-0.3MPa
pH Range: 2-11 (continuous operation)
Maximum Feed Temperature: 40°C
Chlorine Tolerance: <500,000ppm*h

System Advantages

30% lower energy consumption than comparable UF modules
3-5 year typical membrane lifespan with proper maintenance
Automated cleaning cycles maintain stable operation
NSF/ANSI 61 certified for drinking water applications

Based on internal testing at standard conditions (25°C, 100kDa PEG solution). Actual performance may vary by application.

Why Choose DuPont™ SFP-2880?

Backed by DuPont's legacy of membrane innovation, the SFP-2880 ensures high productivity, low energy consumption, and extended service life — reducing total cost of ownership (TCO) for industrial water systems.

Compliance: NSF/ANSI 61 (if applicable), FDA compliant (for food-contact applications, if relevant).

Technical Specifications

Model	Type	Part #	m²	ft²	Liters	Gallons	Kg	lbs
SFP-2880	Pretreatment	280934	77	829	39	10.3	61/100	135/220
SFD-2880	NSF/ANSI 61 Drinking water	324169	77	829	39	10.3	61/100	135/220

Operating Parameters

Parameter	SI units	US units
Filtrate Flux @ 25ºC	40-120 l/m2/hr	24-70 gfd
Flow range	3.1-9.3 m3/hr	13.6 - 40.9 gpm
Temperature	1-40ºC	34-104ºF
Max. inlet module pressure (@ 20ºC)	6.25 bar	93.75 psi
Max. operating TMP	2.1 bar	30 psi
Max operating air scour flow	12 nm3/hr	7.1 scfm
Max backwash pressure	2.5 bar	36 psi
Operating pH	2-11

Installation & Operation

Ensuring that the UF system is properly started is critical to preparing the membrane for operation and preventing potential membrane damage. Following the correct startup sequence is essential to maintaining system parameters within design specifications.
