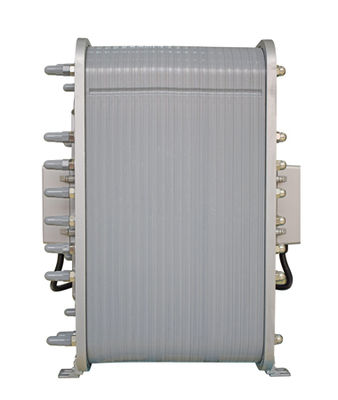

Ionpure CEDI LX-Z IP-LXM24Z-5 EDI Module for Biopharmaceutical Industry

Ionpure CEDI LX-Z IP-LXM24Z-5 EDI Module for Biopharmaceutical Industry

  • Ionpure CEDI LX-Z IP-LXM24Z-5 EDI Module for Biopharmaceutical Industry
  • Ionpure CEDI LX-Z IP-LXM24Z-5 EDI Module for Biopharmaceutical Industry
  • Ionpure CEDI LX-Z IP-LXM24Z-5 EDI Module for Biopharmaceutical Industry
Ionpure CEDI LX-Z IP-LXM24Z-5 EDI Module for Biopharmaceutical Industry
Datos del producto:
Place of Origin: China
Nombre de la marca: IONPURE
Certificación: CE
Model Number: IP-LXM24Z-5
Documento: fgwater-ionpure-lxz-ds.pdf
Pago y Envío Términos:
Cantidad de orden mínima: 1 pieza
Precio: Negociable
Packaging Details: standard export packing
Delivery Time: 5- 8 work days
Payment Terms: T/T,Western Union
Supply Ability: 60000 Units per Month
Contacto
Todos los productos
caja de distribución de iluminación (33)
caja de distribución eléctrica (33)
Caja de distribución a prueba de mal tiempo (48)
Caja del recinto de la fibra de vidrio (60)
Interruptor automático de la transferencia del ATS (68)
Módulos EDI (139)
Módulos de membrana de ultrafiltración (57)
disyuntor industrial (85)
sistema solar del picovoltio (72)
Estación de carga eléctrica de EV (21)
Retransmisiones modulares de la sincronización (12)
Retransmisiones de control de la automatización (64)
Transformador del regulador de voltaje (16)
Globos de la iluminación de la película (136)
Luz del globo de la luna (131)
Globos del trípode LED (115)
Torre ligera inflable (62)
Accesorios del bloque de terminales (6)
Descripción detallada del producto
24Z-5 Minimum Flow Rate m3/hr (gpm): 1.36 (6.0) 24Z-5 Caud de diseño M3/hr (GPM): 2.8-4.2 (12.5-18.8)
24Z-5 Shipping Weight kg (lbs)**: 115 (254) 24Z-5 Operating Weight kg (lbs): 92 (103)
Module Recovery: 90–95% Stack Advantages: Wide Range Of Flow,Low Operating Costs, Providing Stable And Reliable High Purity Water
Stack DC Voltage: 0–400 Stack DC Amperage: 1.0–6.0
Product Application: Biopharmaceutical Industry
Resaltar:

Ionpure CEDI LX-Z EDI module

,

EDI module for biopharmaceutical industry

,

IP-LXM24Z-5 EDI module with warranty

Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry
Key Specifications
Attribute Value
24Z-5 Minimum Flow Rate m3/hr (gpm) 1.36 (6.0)
24Z-5 Design Flow Rate m3/hr (gpm) 2.8-4.2 (12.5-18.8)
24Z-5 Shipping Weight kg (lbs) 115 (254)
24Z-5 Operating Weight kg (lbs) 92 (103)
Module Recovery 90–95%
Stack Advantages Wide Range Of Flow, Low Operating Costs, Providing Stable And Reliable High Purity Water
Stack DC Voltage 0–400
Stack DC Amperage 1.0–6.0
Product Application Biopharmaceutical Industry
Product Features
  • Superior electrical insulation performance
  • Double O-ring seal ensures leak-free operation
  • Operating costs significantly lower than traditional ion exchange
  • No acid, alkali, neutralization system or resin tank required
  • Continuous operation at 7bar (100psi), 45C (113F)
  • Patented "full-filled" concentrate chamber eliminates need for salt addition
  • Produces water quality equal to or better than mixed bed water
  • Continuous water production with stable quality
Ionpure CEDI LX-Z IP-LXM24Z-5 EDI Module for Biopharmaceutical Industry 0
Technology Components

The EDI membrane block removes ions through built-in ion exchange resin (Na+ represents cations and C1- represents anions). The system consists of:

  • Pure water chamber - mixed resin layer between anion and cation exchange membranes
  • Concentrated water chamber - working interlayer between pure water chambers
  • Electrode plates - conductive plates generating electric field during operation
Application Areas
  • Solar photovoltaic industry: pure/ultrapure water for silicon processing
  • Electronics industry: ultrapure water for semiconductor manufacturing
  • Biopharmaceutical industry: GMP-compliant water for production
  • Chemical industry: process water for chemical production
  • Power industry: boiler feed water and ultrapure water
LX-Z Series Advantages
  • Wide flow range from 0.22 m3/h (1 gpm) to 10m3/h (44 gpm) per module
  • Lower operating costs than conventional ion exchange
  • Chemical-free mixed-bed quality deionized water
  • Continuous production with consistent quality
  • NSF® 14 and NSF® 61 compliant materials
Quality Assurance

CE mark certified, each module undergoes strict factory testing to meet industry standards. Manufactured under ISO 9001 and ISO 14000 quality and environmental management systems.

Ionpure CEDI LX-Z IP-LXM24Z-5 EDI Module for Biopharmaceutical Industry 1
Operating Environment

Install indoors away from direct sunlight. Ambient temperature must not exceed 113°F (45°C) for stable operation and extended service life.

Ionpure CEDI LX-Z IP-LXM24Z-5 EDI Module for Biopharmaceutical Industry 2
Technical Specifications
Typical Module Performance
Parameter Value
Recovery 90-95%
DC Voltage 0-400
DC Amperage 1.0-6.0
Product Resistivity Minimum Flow > 17 MW-cm*†
Maximum Flow > 7 MW-cm*†
Silica (SiO2) Removal 90-99%, depending on feed conditions
* Performance data based on maximum inlet water conductivity (40 μS/cm)
Feed Water Specifications
Parameter Requirement
Conductivity (including CO2 and Silica) < 40 μS/cm
Temperature 5-45˚C (41-113˚F)
Inlet Pressure 1.4-6.9 bar (20-100 psig)
Total Chlorine (as Cl2) < 0.05 ppm
Total Hardness (as CaCO3) < 1.0 ppm
Ionpure CEDI LX-Z IP-LXM24Z-5 EDI Module for Biopharmaceutical Industry 3
About FG Water Technologies

FG Water Technologies (www.fgwater.com) is part of Wuxi Fenigal Science and Technology Co. Ltd., specializing in water treatment equipment design, manufacturing, and international shipment. Our products include:

  • Reverse osmosis systems (SWRO/BWRO)
  • Ultrafiltration (UF) systems
  • Electrodeionization (EDI) equipment
  • Media pressure filters and ion exchange softeners

We serve industries worldwide including food & beverage, pharmaceutical, chemical, power, and wastewater treatment.

Ionpure CEDI LX-Z IP-LXM24Z-5 EDI Module for Biopharmaceutical Industry 4
