Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry

Datos del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	IONPURE
Certificación:	CE
Número de modelo:	IP-LXM24Z-5
Documento:	fgwater-ionpure-lxz-ds.pdf

Pago y Envío Términos:

Cantidad de orden mínima:	1 PC
Precio:	Negociable
Detalles de empaquetado:	Embalaje de exportación estándar
Tiempo de entrega:	5- 8 días de trabajo
Condiciones de pago:	T/t, unión occidental
Capacidad de la fuente:	60000 unidades por mes

Contacto

Todos los productos

caja de distribución de iluminación (33)

caja de distribución eléctrica (33)

Caja de distribución a prueba de mal tiempo (48)

Caja del recinto de la fibra de vidrio (60)

Interruptor automático de la transferencia del ATS (68)

Módulos EDI (139)

Módulos de membrana de ultrafiltración (57)

disyuntor industrial (85)

sistema solar del picovoltio (72)

Estación de carga eléctrica de EV (21)

Retransmisiones modulares de la sincronización (12)

Retransmisiones de control de la automatización (64)

Transformador del regulador de voltaje (16)

Globos de la iluminación de la película (136)

Luz del globo de la luna (131)

Globos del trípode LED (115)

Torre ligera inflable (62)

Accesorios del bloque de terminales (6)

Descripción detallada del producto

24z-5 pila de flujo mínimo M3/h (GPM):	1.36 (6.0)	24Z-5 PISTA DE LA PISTA Casa de flujo de flujo M3/HR (GPM):	2.8-4.2 (12.5-18.8)
24Z-5 STACK ENVÍO PESO KG (LBS) **:	115 (254)	24Z-5 PISO OPERATIVO KG (LBS):	92 (103)
Recuperación de pila 24Z-5:	90–95%	Ventajas de pila:	Amplio rango de flujo, bajos costes operativos, suministro de agua de alta pureza estable y fiable
Tensión de corriente continua en pila:	0–400	Amperio de corriente continua de la pila:	1.0–6.0
aplicación del producto:	Industria biofarmacéutica

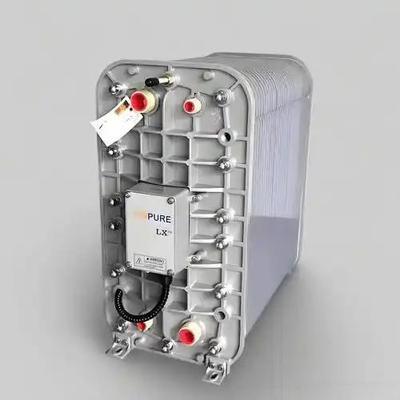

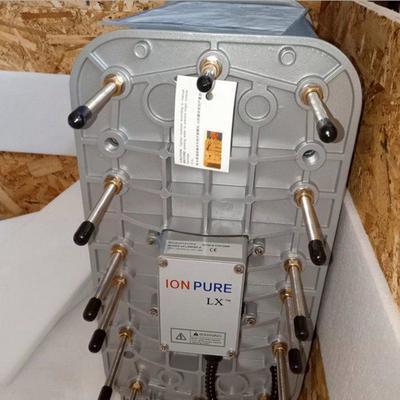

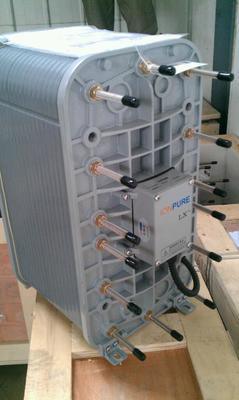

Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry
The Ionpure IP-LXM24Z-5 CEDI module delivers reliable, chemical-free ultrapure water production for industrial applications. With consistent output quality (up to 18 MΩ·cm) and minimal wastewater generation, this system is ideal for pharmaceutical manufacturing, microelectronics production, and laboratory water systems. The compact design features simplified maintenance and easy integration into existing water treatment workflows, significantly reducing operational costs compared to traditional ion exchange systems.

Product Overview

The Ionpure LX-Z is an industrial CEDI module designed for high-purity water production in the biopharmaceutical industry, offering superior water quality with low operating costs.

Key Features

Excellent electrical insulation performance
Double O-ring seal ensures leak-free operation
Significantly lower operating costs than traditional ion exchange
No acid, alkali, or neutralization system required
Continuous operation at 7bar (100psi), 45°C (113°F)
Patented "full-filled" concentrate chamber design
Produces water quality equal to or better than mixed bed systems
Continuous water production with stable quality

Technical Specifications

Attribute	Value
Minimum Flow Rate (m³/hr/gpm)	1.36 (6.0)
Design Flow Rate (m³/hr/gpm)	2.8-4.2 (12.5-18.8)
Shipping Weight (kg/lbs)	115 (254)
Operating Weight (kg/lbs)	92 (103)
Recovery Rate	90-95%
DC Voltage	0-400
DC Amperage	1.0-6.0

Module Components

The EDI membrane block removes ions through built-in ion exchange resin, consisting of:

Pure water chamber - Mixed resin layer between anion and cation exchange membranes
Concentrated water chamber - Working interlayer between pure water chambers
Electrode plates - Generate electric field during operation

Applications

Solar photovoltaic industry
Electronics manufacturing
Biopharmaceutical production
Chemical processing
Conventional industrial applications
Power industry

Quality Assurance

CE mark certified, manufactured under ISO 9001 and ISO 14000 standards with strict factory testing.

Operating Environment

Install indoors away from direct sunlight with ambient temperature not exceeding 45°C (113°F) for optimal performance and longevity.

Performance Data

Recovery: 90-95%

DC Voltage: 0-400

DC Amperage: 1.0-6.0

Product Resistivity: Minimum Flow > 17 MW-cm*†, Maximum Flow > 7 MW-cm*†

Silica (SiO2) Removal: 90-99%

Feed Water Specifications

Parameter	Specification
Conductivity	< 40 μS/cm
Temperature	5-45°C (41-113°F)
Inlet Pressure	1.4-6.9 bar (20-100 psig)
Total Chlorine	< 0.05 ppm
pH	4-11

About FG Water Technologies

A high-tech entity specializing in water treatment equipment design, manufacturing, and international shipment, serving various industrial sectors worldwide.

For more information, visit: www.fgwater.com
