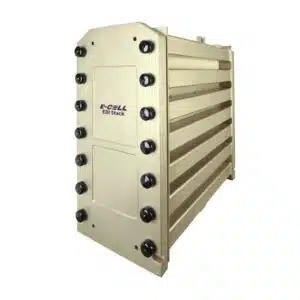

Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design

Datos del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	VEOLIA
Certificación:	CE
Número de modelo:	MK-9
Documento:	Veolia EDI catalog.pdf

Pago y Envío Términos:

Cantidad de orden mínima:	1 PC
Precio:	Negociable
Detalles de empaquetado:	Embalaje de exportación estándar
Tiempo de entrega:	5- 8 días de trabajo
Condiciones de pago:	T/t, unión occidental
Capacidad de la fuente:	60000 unidades por mes

Contacto

Todos los productos

caja de distribución de iluminación (33)

caja de distribución eléctrica (33)

Caja de distribución a prueba de mal tiempo (48)

Caja del recinto de la fibra de vidrio (60)

Interruptor automático de la transferencia del ATS (68)

Módulos EDI (139)

Módulos de membrana de ultrafiltración (57)

disyuntor industrial (85)

sistema solar del picovoltio (72)

Estación de carga eléctrica de EV (21)

Retransmisiones modulares de la sincronización (12)

Retransmisiones de control de la automatización (64)

Transformador del regulador de voltaje (16)

Globos de la iluminación de la película (136)

Luz del globo de la luna (131)

Globos del trípode LED (115)

Torre ligera inflable (62)

Accesorios del bloque de terminales (6)

Descripción detallada del producto

Dimensiones de la pila MK-9 (cm como ancho x altura x profundidad):	30 x 61 x 74	Aniones intercambiables totales de la pila MK-9 (PPM como Caco3):	<13
Conductividad de la pila MK-9 (μs/cm):	<22	Ph de pila mk-9:	4-11
Temperatura de pila MK-9 (° C):	4.4-40	Dureza de la pila MK-9 (ppm como caco3):	<1.0
Caída de presión:	2.4–3.4 bar (35–50 psi)	Presión de entrada:	≤ 6.9 bar (100 psi)
Amperaje:	0–5.2 ADC	Voltaje:	0–400 VDC
Recuperación:	Hasta el 97%	Solicitud:	Diseño de alto flujo y robusto

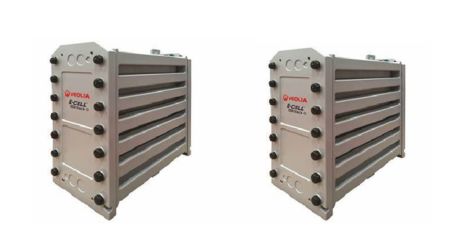

Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design

The Veolia E-Cell MK-9 Electrodeionization (EDI) Module is designed for high-flow, continuous production of ultra-pure water in industrial applications, capable of delivering flows up to 10 m³/h (44 GPM) with resistivity ≥16 MΩ·cm and silica removal to ≤5 ppb. It eliminates the need for chemical regeneration, reducing operational costs and environmental impact. Ideal for power generation, semiconductors, pharmaceuticals, and microelectronics, the MK-9 operates at recovery rates up to 97% and supports hot-water sanitization (up to 85°C) for stringent hygiene requirements. Its robust construction ensures stability under varying feedwater conditions, with compliance to CE, RoHS, and ISO 9001/14001 standards. The module integrates seamlessly into reverse osmosis (RO) systems for polishing permeate, offering scalability and minimal maintenance

Product Specifications

Attribute	Value
Stack Name	MK-9
Dimensions (cm)	30 x 61 x 74 (W x H x D)
Total exchangeable anions (ppm as CaCO3)	<13
Conductivity (μS/cm)	<22
pH Range	4-11
Temperature Range (°C)	4.4-40
Hardness (ppm as CaCO3)	<1.0
Silica (ppm as SiO2)	<1.0
Typical designed water production (m3/hr)	6.0-10.0
Recovery Rate	Up to 97%
Voltage	0–400 VDC
Typical Applications	Solar Photovoltaics And Green Hydrogen

Product Overview

The Veolia MK-9 EDI Stack delivers 35 GPM of ultrapure water for demanding industrial applications. E-Cell EDI technology, based on proven production practices, provides industry-leading product water quality, energy efficiency, and reliability.

Key Features & Benefits

Optimized Flow Rate (8.0 m³/h): Designed for mid-to-large-scale industrial systems requiring reliable high-purity water production
Veolia/Suez Advanced EDI Technology: Incorporates next-generation MK-9 membrane and spacer design for superior ion removal efficiency
Zero Chemical Regeneration: Eliminates hazardous acid/caustic regeneration chemicals, reducing operational costs and environmental impact
Enhanced Energy Efficiency: Optimized stack hydraulics minimize power consumption per liter of purified water
Robust Design & Reliability: Engineered for 24/7 continuous operation with high resistance to scaling and fouling
Smart Operation & Integration: Compatible with modern PLC/SCADA systems for real-time monitoring

Technical Parameters

Parameter	Value
Brand	Veolia EDI
Inlet Pressure	6.9 bar (100 psi)
Max Temperature	40°C (104°F)
Pressure Drop	2.4-3.4 bar (35-50 psi)
Flow Rate	8.0m3/h
Shipping Weight	165 kg (364 lbs)

Key Advantages

Continuously produces ultrapure water of mixed bed water quality
No acid and base regeneration required
Guaranteed leak-proof design
Simplified system design with no brine injection or concentrated water circulation

Typical Applications

Power generation (NOx, boiler feed water)
Electronics manufacturing
General industrial applications
Pharmaceutical & Biotech (WFI pre-treatment)
Microelectronics & Semiconductor Manufacturing
Laboratory Ultra-Pure Water Systems

Why Choose Veolia MK-9 EDI?

As the direct successor to Suez's industry-leading E-Cell™ technology, the MK-9 stack leverages Veolia's global expertise in water treatment. It delivers unmatched operational efficiency, sustainability, and reliability for demanding 8.0 m³/h ultrapure water applications, backed by Veolia's worldwide service and support network.
