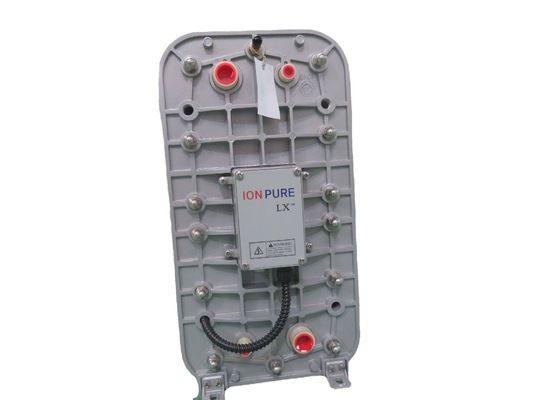

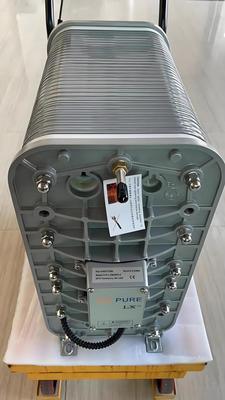

Ionpure LX-Z IP-LXM30Z-5 CEDI Module: Chemical-Free High-Purity Water for Industrial Use
The Ionpure IP-LXM30Z-5 CEDI module provides continuous, chemical-free production of high-purity water (up to 18 MΩ·cm) for critical industrial applications. Designed for pharmaceutical, microelectronics, and power generation industries, this system eliminates chemical regeneration while delivering consistent water quality with minimal wastewater discharge. Featuring robust construction and easy integration capabilities, it offers reliable performance with significantly reduced operational costs compared to traditional ion exchange systems. The compact design simplifies installation in both new and existing water treatment setups.
Product Attributes
| IP-LXM30Z-5 Minimum Flow Rate m3/hr (gpm) |
1.70 (7.5) |
| IP-LXM30Z-5 Design Flow Rate m3/hr (gpm) |
3.3-5.11 (15.0-22.5) |
| IP-LXM30Z-5 Shipping Weight kg (lbs) |
132 (291) |
| IP-LXM30Z-5 Operating Weight kg (lbs) |
110 (243) |
| IP-LXM30Z-5 Recovery |
90–95% |
| IP-LXM30Z-5 Advantages |
Greater Stability |
| Stack Temperature |
5–45˚C (41–113˚F) |
| Stack Inlet Pressure |
1.4–6.9 bar (20–100 psig) |
| Application |
The Production Of Pure Water |
Product Description
The IONPURE® LX-Z IP-LXM30Z-5 is a premium industrial-grade Continuous Electrodeionization (CEDI) module engineered to deliver ultra-pure water without chemical regeneration. Designed for reliability in high-stakes environments, this membrane stack leverages Siemens' patented CEDI technology to replace traditional mixed-bed ion exchange systems, eliminating hazardous chemical handling while ensuring consistent, high-quality output for critical industrial processes.
Key Innovations & Operational Advantages
- Chemical-Free Operation
- Zero Chemical Regeneration: Utilizes electrical current to continuously regenerate ion-exchange resins, removing dissolved ions without acids, alkalis, or neutralization systems.
- Stable Output Quality: Produces water with resistivity >16 MΩ*cm, ensuring compliance with international purity standards.
- Robust Industrial Design
- Durability: Constructed with corrosion-resistant materials, supporting continuous operation at pressures up to 7 bar (100 psi) and temperatures up to 45°C.
- Leak-Proof Integrity: Dual O-ring seals and rigid structural frame prevent leaks during high-pressure operation.
- Efficiency & Scalability
- Optimized Energy Use: Adaptive DC power supply dynamically adjusts to feedwater conductivity and flow rates.
- Modular Deployment: Designed for seamless integration into systems requiring 3.3 -5.1 m³/h of high-purity water.
Quality Assurance Standards
CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under ISO 9001 and ISO 14000 quality and environmental management system standards.
Operating Environment
The module should be installed indoors, away from direct sunlight, with ambient temperature not exceeding 113°F (45°C) to ensure stable and efficient operation.
Typical Module Performance
| Operating Parameters |
|
| Recovery |
90-95% |
| DC Voltage |
0-400 |
| DC Amperage |
1.0-6.0 |
| Product Water Quality |
|
| Product Resistivity |
Minimum Flow > 17 MW-cm*† Maximum Flow > 7 MW-cm*† |
| Silica (SiO2) Removal |
90-99%, depending on feed conditions |
* Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.
** Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm).
Feed Water Specifications
| Feed Water Conductivity Equivalent, including CO2 and Silica |
< 40 μS/cm |
| Feed Water Source |
RO permeate |
| Temperature |
5-45˚C (41-113˚F) |
| Inlet Pressure |
1.4-6.9 bar (20-100 psig) |
| Maximum Total Chlorine (as Cl2) |
< 0.05 ppm |
| Iron (as Fe) |
< 0.01 ppm |
| Manganese (as Mn) |
< 0.01 ppm |
| Sulfide (S2-) |
< 0.01 ppm |
| pH |
4-11 |
| Total Hardness (as CaCO3) |
< 1.0 ppm |
| Dissolved Organics (TOC as C) |
< 0.5 ppm |
| Silica (SiO2) |
< 1.0 ppm |
Physical Specifications
| Item Number |
L +/- 6.4 mm (0.25") |
C +/- 3.2 mm (0.13") |
| LXM04Z |
257 mm (10.12") |
146.8 mm (5.78") |
| LXM10Z |
347.7 mm (13.69") |
235.7 mm (9.28") |
| LXM18Z |
488.2 mm (19.22") |
353.8 mm (13.93") |
| LXM24Z |
601.7 mm (23.69") |
442.7 mm (17.43") |
| LXM30Z |
696.5 mm (27.42") |
531.3 mm (20.92") |
| LXM45Z |
907.3 mm (35.72") |
747.7 mm (29.44") |
| LX8000Z |
1062 mm (41.81") |
888 mm (34.95") |
LX-Z Flow Range and Weights
| Ordering Part # |
Model Number |
Minimum Flow Rate m3/hr (gpm) |
Design Flow Rate m3/hr (gpm) |
Shipping Weight kg (lbs) |
Operating Weight kg (lbs) |
| W3T17286 |
IP-LXM04Z-5 |
0.22 (1.0) |
0.44-0.67 (2.0-3.0) |
59 (130) |
31 (69) |
| W3T17291 |
IP-LXM10Z-5 |
0.57 (2.5) |
1.1-1.65 (5.0-7.5) |
78 (171) |
51 (113) |
| W3T17297 |
IP-LXM18Z-5 |
1.02 (4.5) |
2.0-3.1 (9.0-13.5) |
99 (217) |
74 (163) |
| W3T17303 |
IP-LXM24Z-5 |
1.36 (6.0) |
2.8-4.2 (12.5-18.8) |
115 (254) |
92 (103) |
| W3T17312 |
IP-LXM30Z-5 |
1.70 (7.5) |
3.3-5.11 (15.0-22.5) |
132 (291) |
110 (243) |
| W3T17314 |
IP-LXM45Z-5 |
2.57 (11.3) |
5.1-7.67 (22.5-33.8) |
205 (451) |
157 (345) |
| W3T584543 |
IP-LX8000Z-5 |
3.13 (13.75) |
7.5 - 10 (33 - 44) |
225 (496) |
190 (419) |
E-Cell EDI Technology Performance
E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.
